Camel Convey Steady - Your Trusted Conveyor Components Manufacturer
CC600 Case Conveyor Chain
| Categories | Case Conveyor Chain |
|---|---|
| Brand | CamelConvey Conveyor Chain Manufacturer |
| Model | CC600 Chain |
| Material | ZG40Cr |
| Heat Treatment | Through Hardened |
| Surface Treatment | Normal or Zinc Coating |
| Sample | Available |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
| Download |  |
| Update Time | Jul 31,2025 |
Detail Information
CC600 Case Conveyor Chain for Material Handling Diagram：
Chain No. | Pitch | Dimensions | Average U.T.S | ||||
P | A | B | C | D | E | ||
CC600 | 2.50" | 1.18" | 0.51" | 0.91" | 0.44" | 1.73" | 14600 lbs |
63.5 | 30 | 13 | 23 | 11.1 | 44 | 65KN | |
CC600 Conveyor Chain Product Information：
CamelConvey case conveyor chains are ideal for various applications in harsh environments. They come in steel, or stainless steel, galvanized options. The cast steel chain C600 is dependable for the most demanding traction tasks and can move the heaviest loads. Its straightforward yet sturdy design ensures it is both cost-effective and resilient, making it suitable for tough conditions and long distances.
Features:
● Alternative stainless steel, galvanized and zinc plated version for corrosion protection
● Breaking loads increased about 25% by using cast steel rather than cast iron chains
● Threaded pins and sliding pin in connecting link for easy closing and unclosing of chain
Applications
● LPG industry
● Wood processing industry

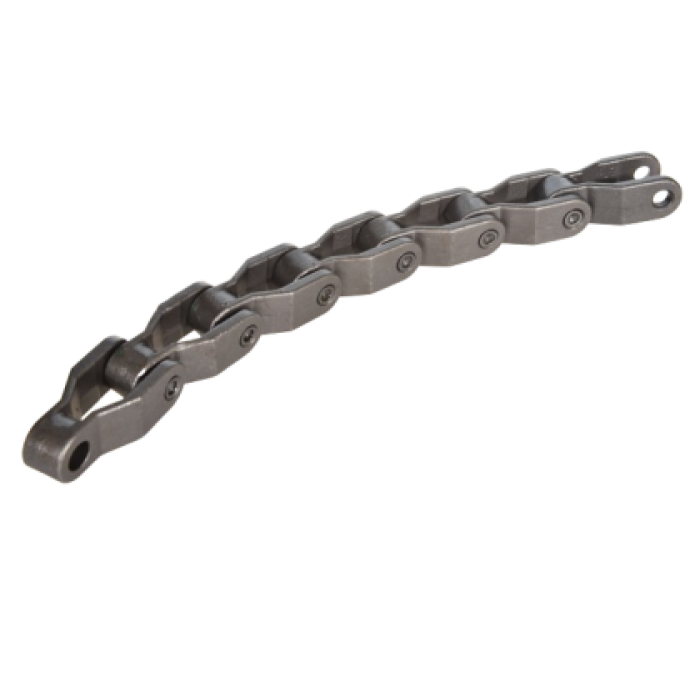

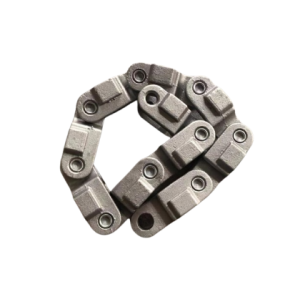

CC600 Case Conveyor Chain for Material Handling Pictures：
