Drop Forged Link Chain Flight

Drop Forged Link Chain Flight
Drop Forged Link Chain FlightDrop Forged Link Chain FlightDrop Forged Link Chain Flight

Drop Forged Link Chain Flight

CategoriesDrop Forged Chain
BrandCamel Chain Conveyor Chain Manufacturers
ModelDrop Forged Link Chain Flight
Material40Cr/5140/41Cr4
Heat TreatmentThrough Hardening
Surface TreatmentNatural
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 4,2024
Detail Information

Drop Forged Link Chain Flight Description:

Camelconvey drop forged chains are made of high grade alloy steel and heat treated.
These forged link chains can be equipped with plastic or steel scrapers.
The Scraper chain conveyor design is available on request.
Customized special chain link is available.
Features & Benefits:
Drop forged from alloy steel
Precision machined
Pitch sizes from 101.6mm (4 inch) to 260mm (10.236 inch)
Double link available
Several materials available, such as 40Cr, 42CrMo, 20CrMnTi and etc.
The respective breaking load and surface/core hardness depend on the material request.
Widely used in Bulk material handling, Timber, Cement, Fertilizer, Coal and etc.

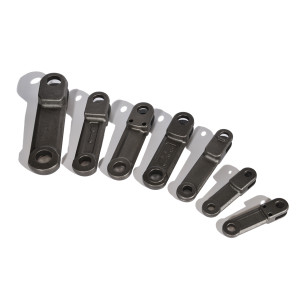

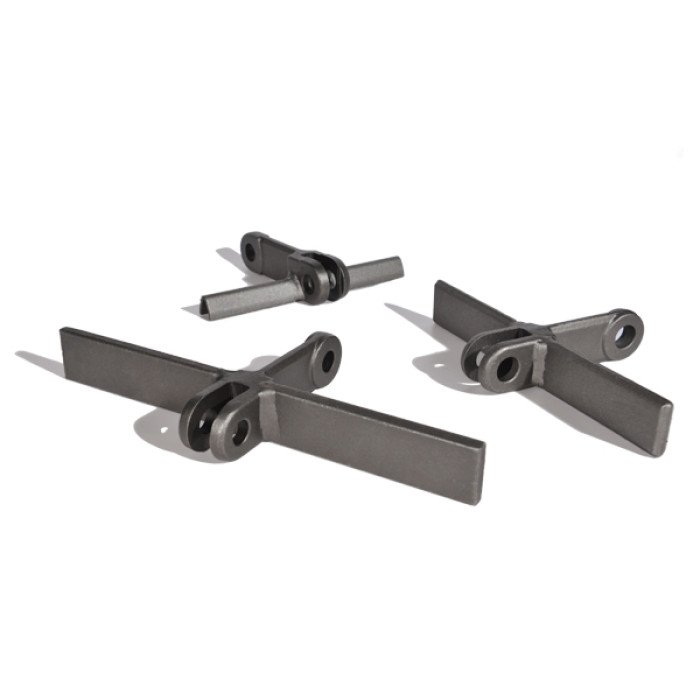

Item Picture:

Drop Forged Link Chain Flight
Drop Forged Link Chain Flight

Drop Forged Link Chain Flight Schematic Diagram:

BAR - Flight
T - Flight
U - Flight
OO - Flight
Drop Forged Link Chain Flight
Drop Forged Link Chain Flight
Drop Forged Link Chain Flight
Drop Forged Link Chain Flight

Drop Forged Link Chain Flight Specification:

Chain  NO.
Pitch
Pin
Diameter
Other Dimensions
Ultimate Tensile
Strength
P
D
C
T
F
R
S
Q
(20MnCr5)
Q
(42CrMo4)
10160
4"
0.55"
1.42”
0.94"
0.39"
0.235"
0.35”
24700lbs
47200lbs
101.6mm
14mm
36mm
24mm
10mm
6mm
9mm
110KN
210KN
 10160R
4"
0.55"
1.42"
1.18"
0.53"
0.315"
0.51"
40500lbs
74200lbs
101.6mm
14mm
36mm
30mm
13.5mm
8mm
13mm
180KN
330KN
12514
4.92"
0.63"
1.42"
1.18"
0.63"
0.39"
0.59"
36600lbs
65200lbs
125mm
16mm
36mm
30mm
16mm
10mm
15mm
163KN
290KN
14218
5.59"
0.98"
1.97"
1.65"
0.81"
0.47"
0.75"
65200lbs
123700lbs
142mm
25mm
50mm
42mm
20.5mm
12mm
19mm
290KN
550KN
14226
5.59"
0.98"
1.97"
2.44"
1.18"
0.63"
1.12"
99000lbs
177700lbs
142mm
25mm
50mm
62mm
30mm
16mm
28.5mm
440KN
790KN
16025
6.30"
0.98"
1.97"
1.97"
1.63"
0.55"
0.98"
83200lbs
147300lbs
160mm
25mm
50mm
50mm
27mm
14mm
25mm
370KN
655KN
20028
7.87"
1.18"
2.36"
2.60"
1.22"
0.79"
1.18"
112500lbs
202500lbs
200mm
30mm
60mm
66mm
31mm
20mm
30mm
500KN
900KN
The dimensions of flight according to the customer's requirement.
And custom flights are also available.
