Powered Flex Conveyor / FWDO-50-L800
| Categories | Roller Conveyor |
|---|---|
| Brand | CamelConvey Conveyor Chain Manufacturer |
| Model | Roller conveyor |
| Material | Steel |
| Sample | Available |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
| Download |  |
| Update Time | Sep 6,2025 |
Detail Information
Powered Flex Conveyor / FWDO-50-L800 Description：
Powered flex conveyor is mainly used in logistics sorting, material handling, and intelligent manufacturing scenarios. It is designed for transporting box-type goods with flat bottoms. The conveyor can be moved and extended, significantly reducing storage space requirements. It compensates for the lack of mobility of fixed conveyors, reduces labor intensity, and optimizes overall logistics costs.
The FWDO-50-L800 powered flex conveyor is a roller conveyor driven primarily by multiple 82ZW.6024-WJ4.3 DC brushless gear motors. The motor operates at DC 24V and features a cylindrical structure with a diameter of 82 mm. Multiple powered flex conveyors can be linked together using connecting hooks to form longer conveying distances.
Key Features of Powered Flex Conveyor / FWDO-50-L800：
1. Safe voltage DC24V, ensuring operator safety.
2. High-efficiency brushless DC, low noise <50 dB.
3. 60W energy-saving high power.
4. Roller driven by poly V-belt.
5. Locking, swivel casters with brake.
6. Stepless speed control.
7. FWD/REV conveying direction.
8. Emergency stop.
9. Unlimited multiple units can be connected in series.
Powered Flex Conveyor / FWDO-50-L800 Technical Specifications：
1. Operating voltage: DC24V
2. Rated current: 2A
3. Output speed: 35 – 170 RPM, continuously adjustable
4. Rated torque: 3.5 Nm
5. Maximum torque: 8.6 Nm
6. Rated power: 60W
7. Motor lifetime: 15,000 hours

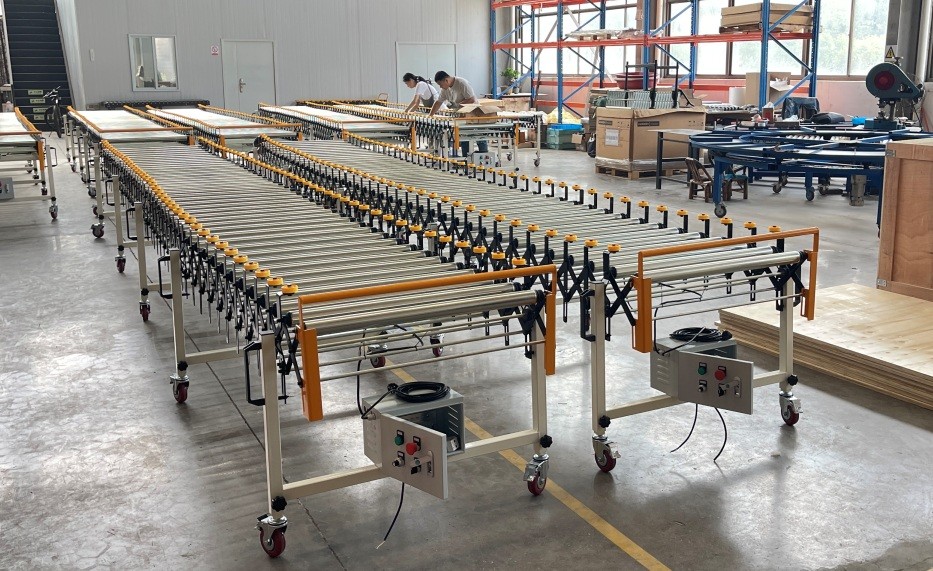

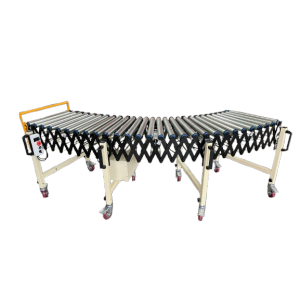

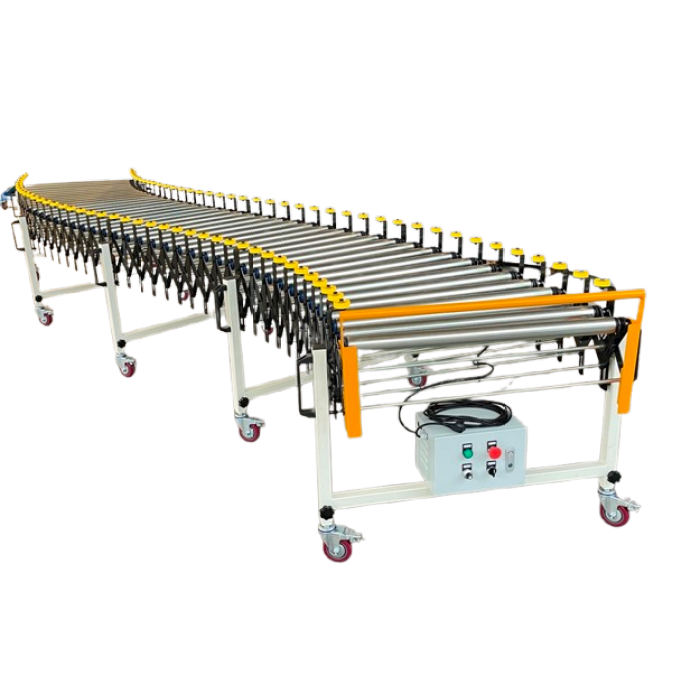

Powered Flex Conveyor / FWDO-50-L800 Pictures：
Powered Flex Conveyor / FWDO-50-L800 Specification:
Item No. | Unit（PCS） | Length（MM） | Width（MM） | Height（MM） | Load Capacity Per Unit（KG） |
FWDP-50 | 2 | 1120-2700 | 500 | 700-100 | 40 |
3 | 1500-3800 | 600 | |||
4 | 1960-4900 | 700 |
Powered Flex Conveyor / FWDO-50-L800 Technical Specifications：
| ltem | Type | Supply Voltage | Rated Current | PRated Power | Output Speed | Rated Torque | |
| Brushless DC Motoer | 82ZW.6024-WJ4.3 | DC24V | 2A | 60W | 35~170rpm | 3.5Nm | |
Powered Flex Conveyor / FWDO-50-L800 Details：
Energy-Efficient Motor
DC brushless motor provide strong power, low noise and less electricity consumption.

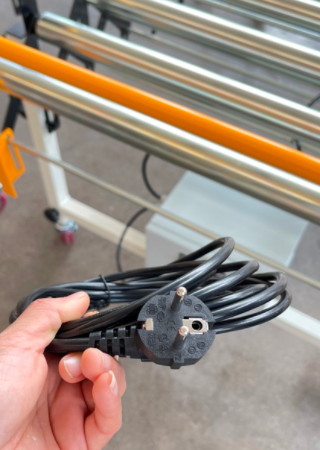

Customizable plugs
Adapted to the appropriate standard according to the customer's country.
Smart Control Panel
Stepless speed control, FWD/REV conveying direction, Emergency stop, easy to operate with rapid response.
Smooth Power Transmission
Driven by Poly V-belt, reduce vibration and bumping, keep stable conveying with long service life.
Modular Design
Easily connects multiple units for greater flexibility.
Ergonomic Handrails
Designed for comfort operation, can also act as box stopper.
Durable Brake Casters
High-quality nylon casters with brake, ensure stability with smooth movement.
Side guide wheels
Optional installation of single or double-sided guide wheels can be added to ensure safe item movement.
