Driver chain for 7 Ton Enclosed Track Chain | 7 Ton Chain Dock Chain with Dogs for Enclosed Overhead Conveyors
Driver chain for 7 Ton Enclosed Track Chain | 7 Ton Chain Dock Chain with Dogs for Enclosed Overhead Conveyors
Detail Information
Driver chain for 7 Ton Enclosed Track Chain | 7 Ton Chain Dock Chain with Dogs for Enclosed Overhead Conveyors Description：
The 7T Drive Chain is a critical component of the 7 Ton Enclosed Track Conveyor. Mounted on the drive unit and powered by a sprocket, its proper design and usage directly impact the efficiency, reliability, and ability of the system to handle heavy-duty applications.
The standard 7T Drive Chain length is 2200mm, with one drive dog per four links, totaling 11 drive dogs. The drive dogs are forged from high-strength alloy steel, and all drive chain components undergo heat treatment to ensure superior strength, tensile capacity, and enhanced wear resistance of the drive dogs.

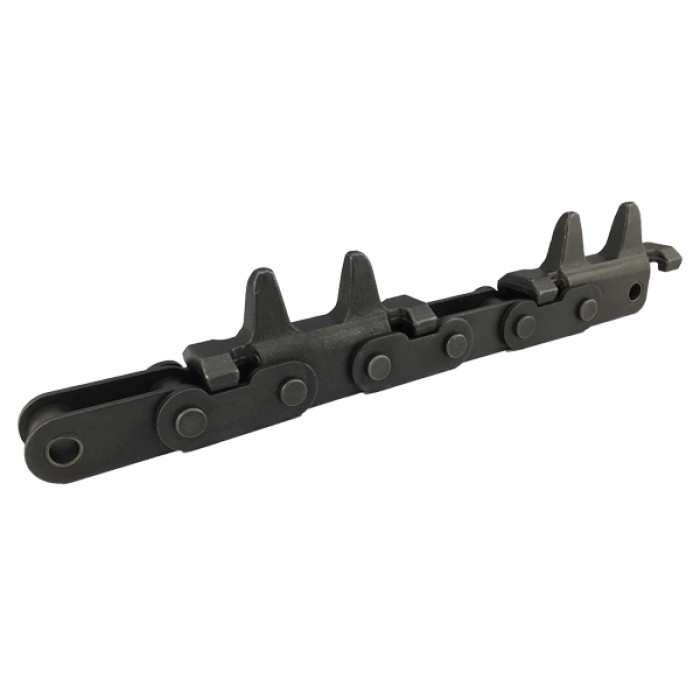

Driver chain for 7 Ton Enclosed Track Chain | 7 Ton Chain Dock Chain with Dogs for Enclosed Overhead Conveyors Pictures：
Driver chain for 7 Ton Enclosed Track Chain| 7 Ton Chain Dock Chain with Dogs for Enclosed Overhead Conveyors Schematic Diagram：
Driver chain for 7 Ton Enclosed Track Chain| 7 Ton Chain Dock Chain with Dogs for Enclosed Overhead Conveyors Specification:
Chain No. | Dimensions(mm) | |||||
P | W | d1 | b1 | H | A | |
7 Ton Driver Chain | 50 | 200 | 22 | 19 | 30 | 57.5 |
