Bi-Planar Conveyor Chain | Cardan Conveyor Systems | 72032

Bi-Planar Conveyor Chain | Cardan Conveyor Systems | 72032

Bi-Planar Conveyor Chain | Cardan Conveyor Systems | 72032

CategoriesEnclosed Track Chain
BrandCamelConvey Conveyor Chain Manufacturer
Model72032
Material40Cr
Heat TreatmentThrough Hardening
Surface TreatmentNatural
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeFeb 8,2025
Detail Information

Bi-Planar Conveyor Chain | Cardan Conveyor Systems | 72032 Description:

Bi-Planar Conveyor Chains are selected based on the weight of the materials or equipment being transported and operate within a designated track. The chains are composed of high-precision stamped chain plates, with pins made from special alloy steel combined with precision bearing units. We offer a wide range of custom chains, with options for material and size customization. Chains can be reproduced according to specifications or samples provided.

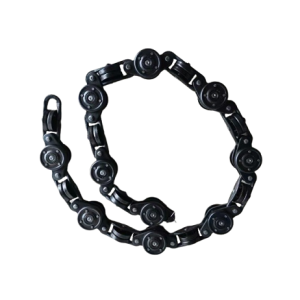

Bi-Planar Conveyor Chain | Cardan Conveyor Systems | 72032 Pictures:

BI-Planar Cardan Conveyor Chain
BI-Planar Cardan Conveyor Chain

Bi-Planar Conveyor Chain | Cardan Conveyor Systems | 72032 Schematic Diagram:

BI-Planar Cardan Conveyor Chain

Bi-Planar Conveyor Chain | Cardan Conveyor Systems | 72032 Specification:

Chain Size
Dimensions(mm)
P
D
d1
d2
T
A
B
L
H
72032-1
203.2
37
10
10.5
4
77
30
78
25
72032-2
203.2
47
14
10.5
5
77
45
99
30
