CC100 Metric Chain | Drop Forged Rivetless Chain

CC100 Metric Chain | Drop Forged Rivetless Chain

CC100 Metric Chain | Drop Forged Rivetless Chain

CategoriesDrop Forged Rivetless Chain
BrandCamel Chain Conveyor Chain Manufacturers
ModelCC100
MaterialSAE5140 /SAE4140/SAE8642
Heat TreatmentThrough Hardening
Surface TreatmentZinc Plating/Hot-Dip Galvanizing/Other Surface Ant
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 3,2024
Detail Information

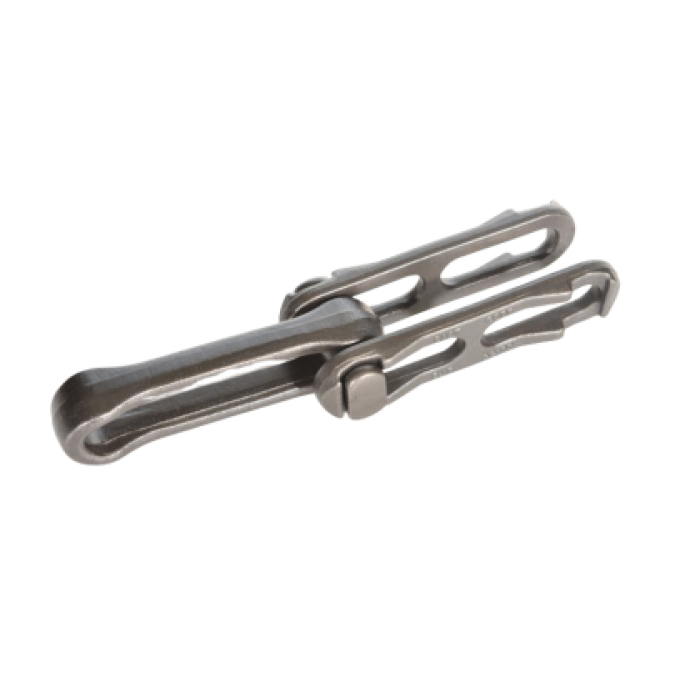

CC100 Metric Chain | Drop Forged Rivetless Chain Description:

The CC100 Forged Chain is a high-strength, durable chain designed specifically for demanding industrial applications, particularly in overhead and inverted conveyor systems. Its forged construction provides exceptional toughness and reliability, making it ideal for use in environments where heavy loads and continuous operation are common.

CC100 Metric Chain | Drop Forged Rivetless Chain Schematic Diagram:

CC100 CHAIN

CC100 Metric Chain | Drop Forged Rivetless Chain Specification:

Chain No.
Pitch
Pin Diameter
Pin Length
Other Dimensions
Ultimate Tensile Strength
Type
P
D
L
A
B
C
E
Q
CC100
3.94"
0.625”
2.24"
1.42"
0.63"
0.98”
0.69"
47250 lbs
Regular
100mm
15.88mm
57mm
36mm
16mm
25mm
17.5mm
210 KN

Overview:

Trustworthy Camelconvey

Camelconvey is a conveyor chain manufacturer with over 30 years of history. We are passionate about innovation and the pursuit of excellence. Camelconvey has a comprehensive product development and customer service system, continuously improving customer-centric product solutions. Providing the highest quality conveyor chains from China to customers worldwide is our unwavering pursuit.
