Performance Comparison of X348 chain between material SS304 and 40Cr Alloy Steel

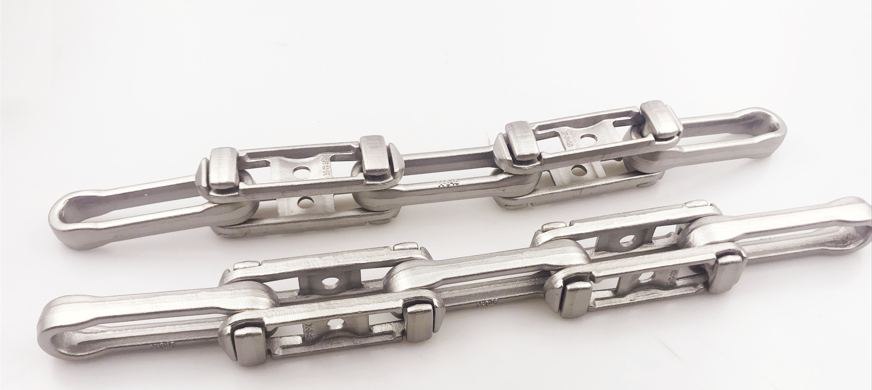

1. Core Characteristics and Performance of X348 Chains in material Stainless Steel 304/316
SS304 is a common stainless steel with stable chemical properties, granting X348 stainless steel chains excellent corrosion and oxidation resistance. Its chromium-nickel alloy composition forms a dense protective oxide film on the surface, effectively resisting rust and erosion caused by humidity, water vapor, weak acid, weak alkali and salt fog. It can operate stably for a long time in mildly corrosive environments without surface degradation.
In addition, X348 chains in SS304 deliver outstanding hygienic performance and stable mechanical properties under extreme temperatures. They generate no rust debris or harmful precipitates, fully meeting the strict sanitation requirements of food processing, pharmaceutical and beverage industries. They also maintain reliable low-temperature toughness without brittle fracture, making them ideal for cold storage and low-temperature production lines.
The biggest limitation of X348 chains in SS304 is non-heat-treatable mechanical properties. This material cannot be hardened through quenching and tempering. It retains low surface hardness and poor wear resistance in its original state, with a tensile strength of 515–620 MPa and a yield strength of approximately 205 MPa, which is noticeably lower than heat-treated 40Cr Alloy steel chains.
Under heavy-load and high-frequency friction conditions, the pins, bushings and rollers of chains with SS304 material wear rapidly, causing chain elongation, loose fitting and reduced transmission accuracy, which results in short service life in heavy-duty working scenarios. Moreover, SS304 features higher material and processing costs as well as poor machinability, and its low hardness makes it prone to scratches and mechanical damage during operation and installation.

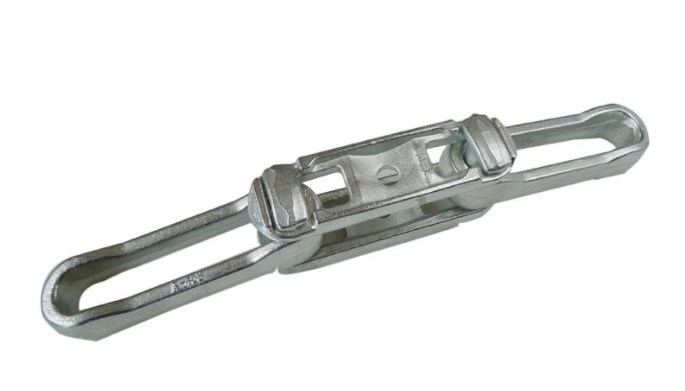

2. Core Characteristics and Performance of 40Cr Carbon Steel X348 Chains
40Cr alloy carbon steel possesses superior harden ability, serving as the mainstream high-strength material for X348 chains. Its core advantage is controllable high strength and excellent wear resistance via standardized heat treatment. Key components including chain plates, pins and bushings are quenched and tempered to refine internal grain structure, achieving a tensile strength of 600–1200 MPa, with significantly improved surface hardness, impact resistance and structural stability.
Heat-treated X348 chain in 40Cr or 42CrMo provide stable and reliable mechanical performance. They withstand heavy tension, impact loads and long-term continuous friction with minimal deformation and wear, effectively avoiding chain elongation and structural failure during high-load operation. With strong universal adaptability, they are widely used in conventional industrial scenarios such as heavy-duty material conveying and automated production lines.
Untreated bare 40Cr chains have poor natural corrosion resistance and are susceptible to oxidation and rust in humid or mildly corrosive environments, which accelerates component failure. To solve this defect, electro-galvanizing and hot-dip galvanizing are commonly applied as surface treatments to enhance environmental adaptability.
The galvanized coating forms a physical barrier and provides sacrificial anode protection, isolating the steel substrate from moisture and corrosive media. After surface treatment, 40Cr chains retain high strength and wear resistance while obtaining reliable rust-proof performance, suitable for most conventional humid indoor and outdoor working conditions. Meanwhile, 40Cr carbon steel has low material and maintenance costs, delivering excellent cost performance for long-term industrial operation.
Nevertheless, X348 chain in 40Cr material have inherent drawbacks. Heat treatment improves hardness but slightly reduces ductility, making the chain vulnerable to brittle fracture under sudden extreme impact loads. In addition, galvanized coatings have limited anti-corrosion capacity; they will peel and fail in strong acid, strong alkali or high-salt fog environments, failing to adapt to severe corrosive working conditions.
3. Comprehensive Performance Comparison & Application Selection
The following table intuitively compares the core performance differences between SS304 X348 chains and heat-treated & galvanized 40Cr X348 chains, covering key indicators for industrial selection:
| Performance Indicators | SS304 Stainless Steel X348 Chain | 40Cr Carbon Steel (Heat-treated + Galvanized) X348 Chain |
| Heat Treatability | Non-heat-treatable, fixed low hardness and strength | Heat-treatable, adjustable high hardness and strength |
| Mechanical Strength | Low (Tensile: 515–620 MPa) | High (Tensile: 600–1200 MPa), excellent load resistance |
| Wear Resistance | Poor, prone to wear and elongation under heavy loads | Excellent, stable for long-term high-friction operation |
Corrosion Resistance | Excellent, resistant to humidity, salt fog and mild corrosion | Good for conventional humid environments, ineffective for strong corrosion |
Temperature Stability | Excellent, no brittle failure under extreme high/low temperature | Average, not suitable for extreme temperature scenarios |
Hygiene Performance | High, food-grade compliant, no debris or harmful precipitation | General, not applicable for high-cleanliness industries |
Service Life | Short under heavy load; durable under light-load corrosive conditions | Long service life under heavy-duty and high-friction conventional conditions |
Cost Performance | High initial cost, low long-term maintenance cost | Low procurement cost, requires regular daily maintenance |
Applicable Scenarios | Food, pharmaceutical, cold storage, marine and mildly corrosive environments | General machinery, heavy-duty conveying, indoor and outdoor conventional working conditions |
Conclusion
In conclusion, X348 chain in SS304 stand out in corrosion resistance, hygienic performance and extreme temperature stability. Restricted by non-heat-treatable low hardness and poor wear resistance, they are only suitable for light-load, high-cleanliness and mildly corrosive working scenarios. In contrast, X348 chain in 40Cr possess high mechanical strength and superior wear resistance. With galvanized surface treatment, they obtain basic anti-corrosion capability and balanced cost-performance, making them the preferred solution for conventional heavy-duty industrial transmission and conveying systems.
