698 Drop Forged Rivetless Chain | 698 Chain

698 Drop Forged Rivetless Chain | 698 Chain
698 Drop Forged Rivetless Chain | 698 Chain698 Drop Forged Rivetless Chain | 698 Chain

698 Drop Forged Rivetless Chain | 698 Chain

CategoriesSugar Mill Chain
BrandCamelConvey Conveyor Chain Manufacturer
ModelX698 Chain
MaterialAlloy Steel / Stainless Steel
Heat TreatmentThrough Hardening
Surface TreatmentNone
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeDec 10,2024
Detail Information

698 Drop Forged Rivetless Chain | 698 Chain Description:

The 698 chain is made from high-quality steel with fully heat-treated components, offering an ultimate strength of 130,000 lbs. It is designed for enhanced flexibility, transverse pitch strength, and superior overall performance. The 698 Rivetless Drop Forged Chain is used in various industries, including automotive, car washes, material handling, meat packing, overhead conveyors, poultry processing, and sugar processing. CamelConvey also provide a full range of 698 chain sprockets and attachments.

X-STYLE RIVETLESS CHAINS ADVANTAGE

● Precise pitch control provides consistency and reliability.
● Smooth forged bearing areas allow for extended wear life.
● Proprietary heat treatment allows for a premium balance of strength, toughness, and durability.
● Easy assembly/disassembly – no tools required.
● Hardened pin for enhanced wear resistance and extended life.

TYPICAL APPLICATIONS
● Overhead Power/Free Conveyors

A brief introduction of CamelConvey 698 Chain

The 698 Drop Forged Rivetless Chain, also known as the X698 chain, is a heavy-duty conveyor chain designed for high-performance applications. This chain features a simple detachable construction, making it easy to assemble and repair. Its loose link design and shaped inner bars allow for lateral flexibility, which is ideal for use in overhead carousels. The 698 chain is also self-cleaning, which makes it highly effective in applications like drag chains in swarf conveyors.

As a leading conveyor chain manufacturer, CamelConvey offer a range of attachments and external rollers upon request, along with sprockets that suit all the chains in our product line. The X698 chain for sugar industry is specifically engineered to provide increased flexibility and transverse pitch strength, ensuring superior operational performance in demanding environments. This makes the 698 chain an excellent choice for industries such as sugar processing.

As a trusted Sugar Mill Chain Supplier, CamelConvey can also customize Drop Forged Sugar Mill Conveyor Chains to meet the unique needs of your conveying equipment. Whether you need a standard or specialized solution, our X698 chain for sugar processing ensures reliability and high efficiency in your operations.

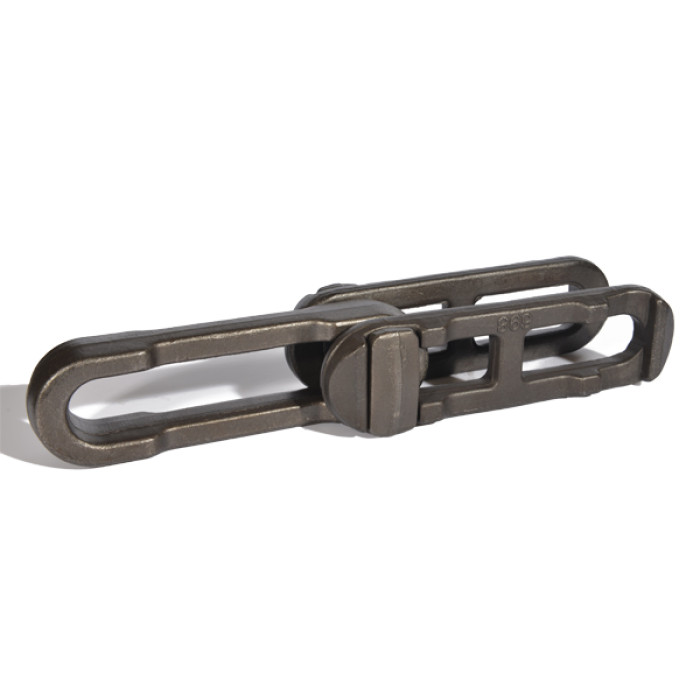

698 Drop Forged Rivetless Chain | 698 Chain Schematic Pictures:

X698 chain
X698 chain

698 Drop Forged Rivetless Chain | 698 Chain Schematic Diagram:

X-Type
Regular-Type
S-Type
X698 chain
X698 chain
X698 chain

698 Drop Forged Rivetless Chain | 698 Chain Specification:

Chain NO.
Normal Pitch
Actual Pitch
Pin Diameter
Pin Length
Other Dimensions
Ultimate Tensile Strength
P
D
L
A
B
C
E
Q
X698
6"
6.03"
1.126"
3.74"
2.54"
1"
1.54"
1.26"
114750lbs
152.4mm
153.2mm
28.6mm
95mm
64.5mm
25.4mm
39mm
32mm
510KN
