C55 Cast Combination Chain

C55 Cast Combination Chain
C55 Cast Combination ChainC55 Cast Combination ChainC55 Cast Combination Chain

C55 Cast Combination Chain

CategoriesSugar Mill Chain
BrandCamel Chain Conveyor Chain Manufacturers
ModelC55
Material40Cr
Heat TreatmentThrough Hardening
Surface TreatmentNatural
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 3,2024
Detail Information

C55 Cast Combination Chain Description:

C55 cast chain is used in a wide range of applications including; bucket elevators, flight conveyors, forest products, grain handling, sugar processing, and more! C55 cast chain links are manufactured to be symmetrical which means that this chain can travel in either direction. C55 cast chain has the capability of conveying both abrasive and non-abrasive materials which greatly broadens its range of applications that it can be used in. For additional information or to get a quote on the C55 cast chain, contact us: sales@camelconvey.com

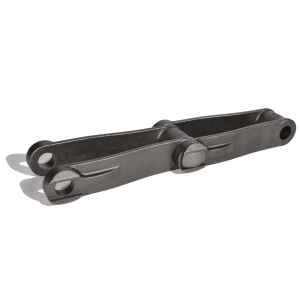

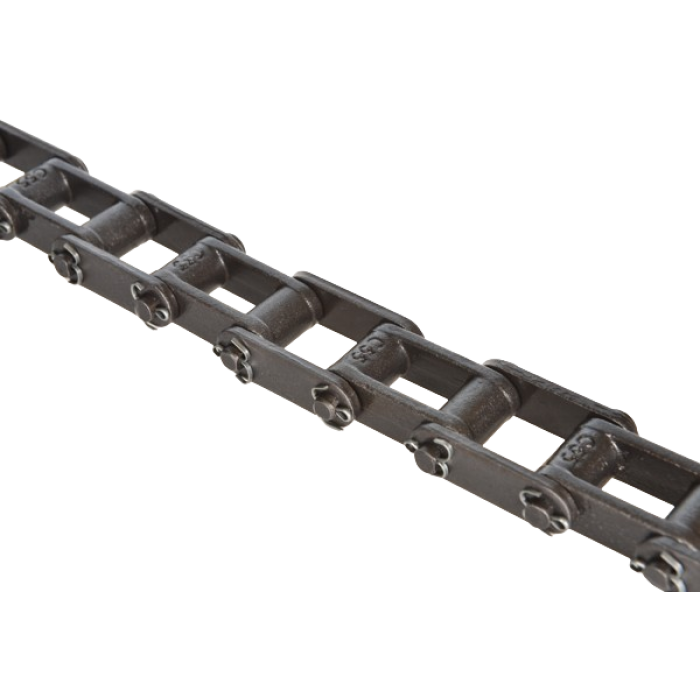

Item Picture:

C55 Cast Chain
C55 Cast Chain

C55 Cast Combination Chain Schematic Diagram:

C55 Cast Chain

C55 Cast Combination Chain Specification:

Chain Size
Pitch
Dimensions
Average
U.T.S
P
A
B
C
D1
D2
T
C55
1.631"
0.75"
0.69"
1.26"
0.38"
0.73"
0.197"
10000 lbs
41.43mm
19.05mm
17.5mm
32mm
9.6mm
18.5mm
5mm
45KN
