Chain Attachment Pusher Dog
Chain Attachment Pusher DogChain Attachment Pusher DogChain Attachment Pusher Dog

Chain Attachment Pusher Dog

CategoriesPower and Free Conveyor Components
BrandCamel Chain Conveyor Chain Manufacturers
ModelPusher Dog
MaterialAlloy Steel
Surface TreatmentShot Peening
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 3,2024
Detail Information

Pusher Dog | Chain Attachment Description:

Chain attachment pusher dog work with power and free conveyor trolleys and systems. These conveyors provide direct, positive control of each load in the system making them ideally suited to industrial applications that demand maximum versatility, productivity, and efficiency. This high level of control is due to the dual track configuration of power free systems. The main (or “power”) track is a chain-driven conveyor that moves carriers through the system.

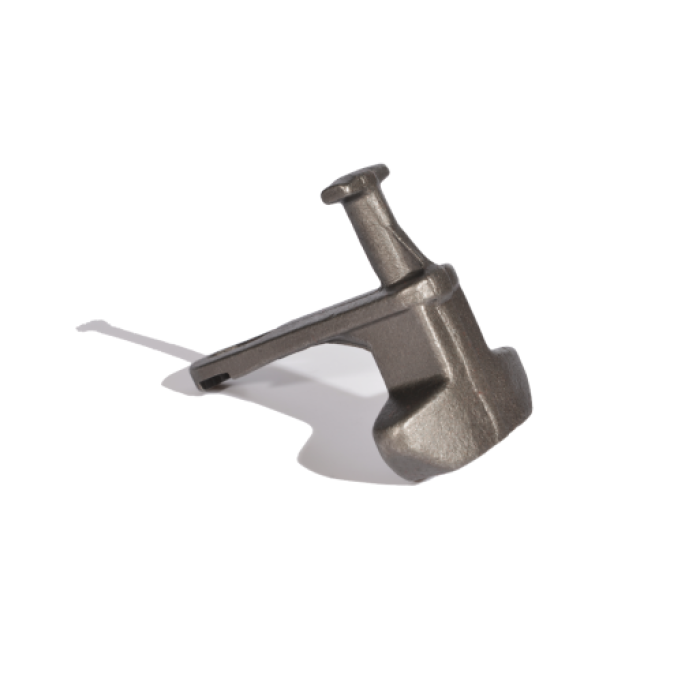

Item Picture:

push dog
push dog

Pusher Dog | Chain Attachment Schematic Diagram:

push dog

Pusher Dog | Chain Attachment Specification:

Chain No.
Nominal Pitch
Actual Pitch
Pin Diameter
Pin Length
Other Dimensions
P
D
L
A
B
C
E
X348
3"
3.02''
0.5”
1.81"
1.1"
1.06"
2.38”
2.95''
76.2mm
76.6mm
12.7mm
46mm
28mm
27mm
60.5mm
75mm
X458
4''
4.03''
0.625''
2.24''
1.42''
1.34''
2.77''
3.62''
101.6mm
102.4mm
15.88mm
57mm
36mm
34mm
70.3mm
92mm
X678
6''
6.03''
0.87''
3.03''
2''
1.42''
3.23''
3.94''
152.4mm
153.2mm
22mm
77mm
50.8mm
36mm
82mm
100mm

Overview:

Trustworthy Camelconvey

Camelconvey is a conveyor chain manufacturer with over 30 years of history. We are passionate about innovation and the pursuit of excellence. Camelconvey has a comprehensive product development and customer service system, continuously improving customer-centric product solutions. Providing the highest quality conveyor chains from China to customers worldwide is our unwavering pursuit.
