X458 Forged Rivetless Chain Side Link Pusher Dog

X458 Forged Rivetless Chain Side Link Pusher Dog
X458 Forged Rivetless Chain Side Link Pusher DogX458 Forged Rivetless Chain Side Link Pusher DogX458 Forged Rivetless Chain Side Link Pusher Dog

X458 Forged Rivetless Chain Side Link Pusher Dog

CategoriesPower and Free Conveyor Components
BrandCamel Chain Conveyor Chain Manufacturers
ModelX458 Pusher Dog
MaterialAlloy Steel
Surface treatmentShot Peening
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 4,2024
Detail Information

X458 Forged Rivetless Chain Side Link Pusher Dog Description:

Pusher dogs work with power and free conveyor trolleys and systems. These conveyors provide direct, positive control of each load in the system making them ideally suited to industrial applications that demand maximum versatility, productivity, and efficiency. This high level of control is due to the dual track configuration of power free systems. The main (or “power”) track is a chain-driven conveyor that moves carriers through the system.

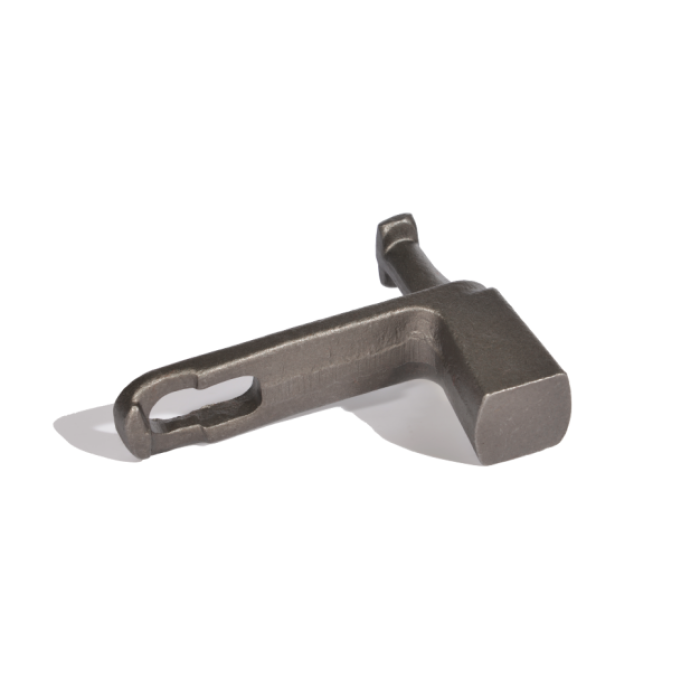

Item Picture:

push dog
push dog

X458 Forged Rivetless Chain Side Link Pusher Dog Schematic Diagram:

push dog

X458 Forged Rivetless Chain Side Link Pusher Dog Specification:

Chain No.
Nominal Pitch
Actual Pitch
Pin Diameter
Pin Length
Other Dimensions
P
D
L
A
B
C
X458
4''
4.03''
0.625''
2.24''
1.42''
1.36''
2.24''
101.6mm
102.4mm
15.88mm
57mm
36mm
34.5mm
57mm

Overview:

Trustworthy Camelconvey

Camelconvey is a conveyor chain manufacturer with over 30 years of history. We are passionate about innovation and the pursuit of excellence. Camelconvey has a comprehensive product development and customer service system, continuously improving customer-centric product solutions. Providing the highest quality conveyor chains from China to customers worldwide is our unwavering pursuit.
