H Class Case Conveyor Pintle Chain

H Class Case Conveyor Pintle Chain

H Class Case Conveyor Pintle Chain

CategoriesCase Conveyor Chain
BrandCamel Chain Conveyor Chain Manufacturers
ModelH Class
Material40Cr
Heat TreatmentThrough Hardening
Surface TreatmentNatural
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 4,2024
Detail Information

H Class Case Conveyor Pintle Chain Description:

H series pintle chain is a casting chain. Pintle chains are of one-piece cast offset link construction joined together by steel clipped heads. This chain is an extremely strong, serviceable chain originally designed for heavy drives and transfer conveyor purposes in saw mills and the paper and pulp industry. H series pintle chain has proven itself for innumerable other industrial applications as well, especially for moderate duty in abrasive atmospheres where heavy, rugged chain is required. The sidebars of the H series pintle chain links are reinforced with wearing shoes which strengthen and stiffen the links when it is operated in troughs or over floors and runways. H series pintle chain pins are available in both riveted and cottered construction. T-head pins engage two lugs cast on the links' sidebars. This configuration prohibits pin rotation during chain operation, eliminating abrasive wear and pitch elongation. The direction of travel for H series pintle chain is determined by the application.

Item Picture:

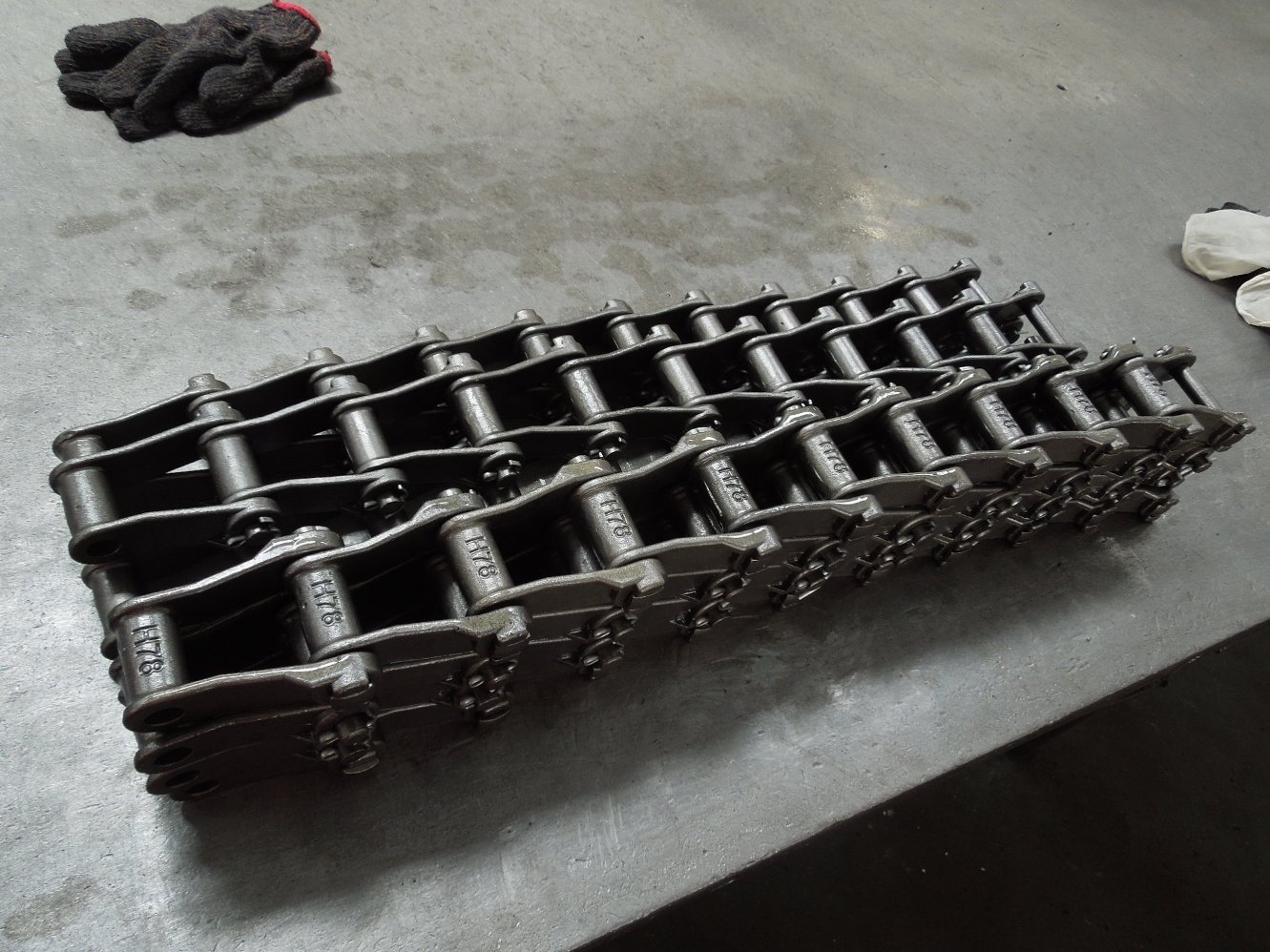

H series pintle chain

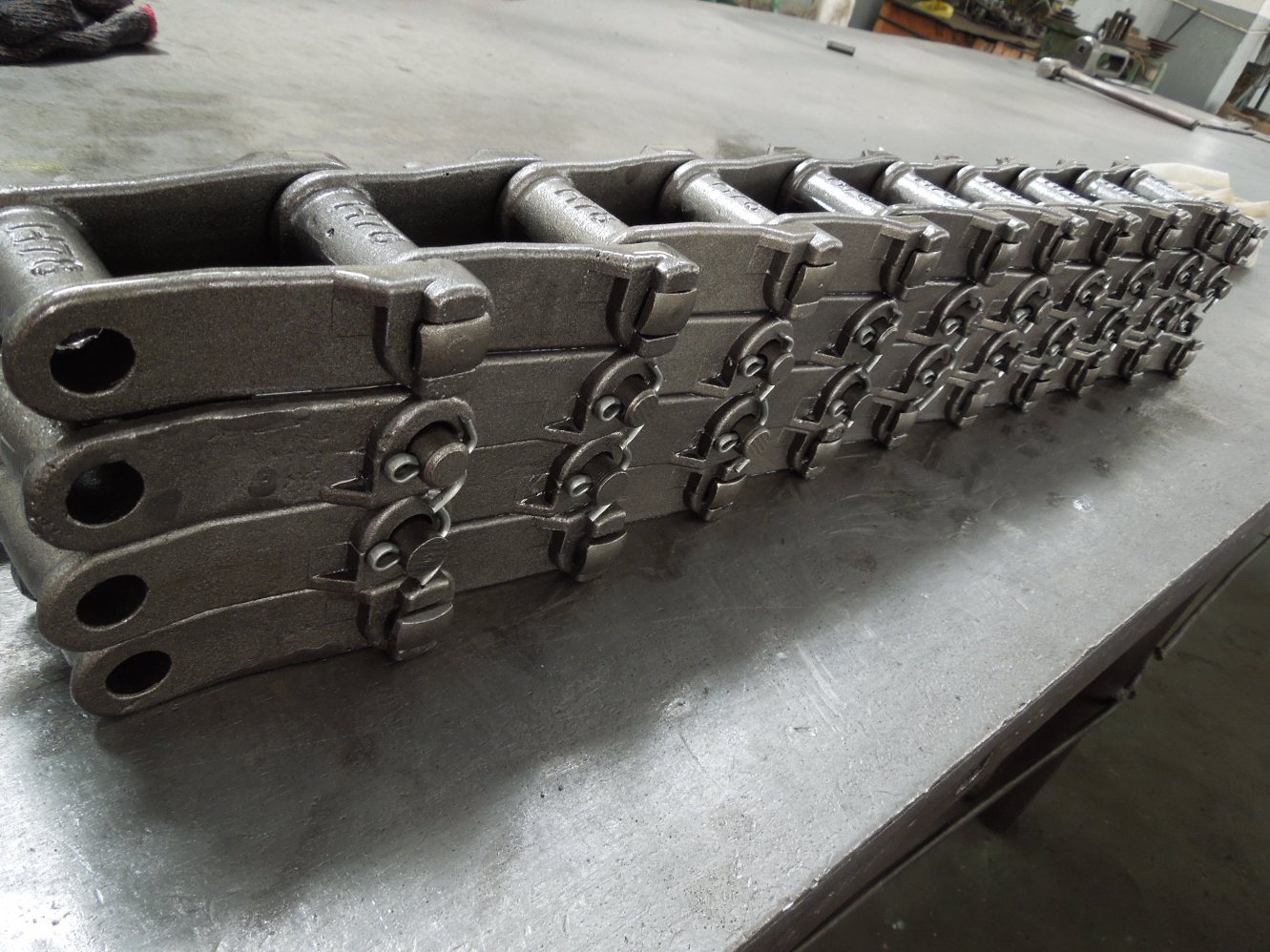

H series pintle chain

H Class Case Conveyor Pintle Chain Schematic Diagram:

CC100 CHAIN

H Class Case Conveyor Pintle Chain Specification:

Chain No.
Pitch
Dimensions
Average
U.T.S
P
A
B
C
D1
D2
H60
2.308"
0.75"
0.75"
1.50"
0.31"
0.75"
7000 lbs
58.62mm
19.05mm
19.05mm
38.1mm
7.9mm
19.05mm
31 KN
H78
2.609"
1.12"
1.12"
1.88"
0.50"
0.88"
12600 lbs
66.27mm
28.5mm
28.5mm
47.75mm
12.7mm
22.35mm
56 KN
H82
3.075"
1.25"
1.25"
2.12"
0.56"
1.22"
17000 lbs
78.1mm
31.75mm
31.75mm
53.8mm
14.2mm
31mm
75.5 KN
H124
4"
1.56"
1.63"
2.75"
0.75"
1.44"
24500 lbs
101.6mm
39.62mm
41.4mm
69.85mm
19.05mm
36.58mm
109 KN
Customer dimensions are also available.
