X458 Trolley | 4" Overhead Trolley B Type

X458 Trolley | 4" Overhead Trolley B Type

X458 Trolley | 4" Overhead Trolley B Type

CategoriesOverhead Conveyor Trolleys
BrandCamel Chain Conveyor Chain Manufacturers
ModelX458 trolley
MaterialSAE5140 /SAE4140/SAE8642
Heat TreatmentThrough Hardening
Surface TreatmentZinc Plating/Hot-Dip Galvanizing/Other Surface Ant
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 3,2024
Detail Information

X458 Trolley | 4" Overhead Trolley B Type Description:

Camel X458 Trolley is availabe in either full ball complement or retainer configurations.
The full ball complement trolley wheel contains the maximum number of recision ball bearings and is designed for heavey duty and/or high heat applications.
The retainer type trolley wheel has each precision ball bearing separated and equally spaced around the periphery of the bearing race by a two piece steel retainer cage. The retainer type wheel is designed primarily for transportation and parts delivery systems. It is generally not suited for heavy duty or high heat applications.

Item Picture:

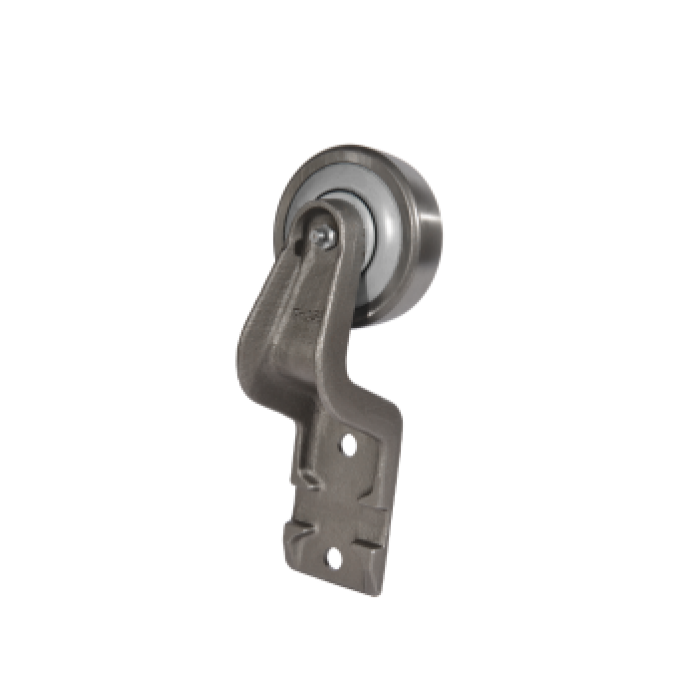

X458 Trolley
X458 Trolley

X458 Trolley | 4" Overhead Trolley B Type Description:

4''Trolley B type

X458 Trolley | 4" Overhead Trolley B Type Description:

Trolley
Size
Matched
Chain
Trolley Dimensions
Trolley
Capacity
Type
A
B
C
D
E
F
G
H
4"
458、100
5.35"
0.71"
5"
3.15"
3.19"
2.13"
0.39"
7.187"
180kg
B
136mm
18mm
127mm
80mm
81mm
54mm
10mm
182.6mm
