X348 Trolley | 3" Overhead Conveyor Trolley for Poultry Line

X348 Trolley | 3" Overhead Conveyor Trolley for Poultry Line
X348 Trolley | 3" Overhead Conveyor Trolley for Poultry LineX348 Trolley | 3" Overhead Conveyor Trolley for Poultry Line

X348 Trolley | 3" Overhead Conveyor Trolley for Poultry Line

CategoriesOverhead Conveyor Trolleys
BrandCamel Chain Conveyor Chain Manufacturers
ModelX348
MaterialSAE5140 /SAE4140/SAE8642
Heat TreatmentThrough Hardening
Surface TreatmentZinc Plating/Hot-Dip Galvanizing/Other Surface Ant
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 3,2024
Detail Information

X348 Trolley | 3" Overhead Conveyor Trolley for Poultry Line Description:

Camel X348 Trolley is availabe in either full ball complement or retainer configurations.
The full ball complement trolley wheel contains the maximum number of recision ball bearings and is designed for heavey duty and/or high heat applications.
The retainer type trolley wheel has each precision ball bearing separated and equally spaced around the periphery of the bearing race by a two piece steel retainer cage. The retainer type wheel is designed primarily for transportation and parts delivery systems. It is generally not suited for heavy duty or high heat applications.

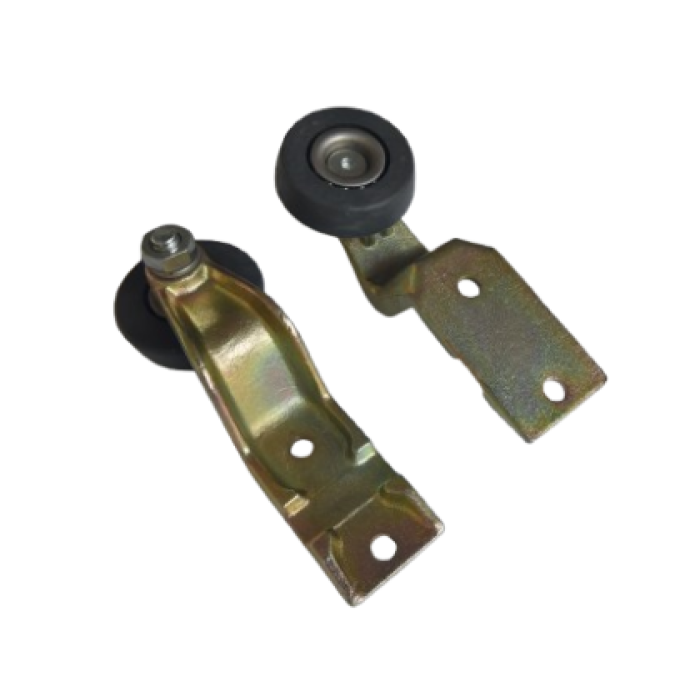

Item Picture:

X348 Trolley
X348 Trolley

X348 Trolley | 3" Overhead Conveyor Trolley for Poultry Line Schematic Diagram:

X348 Trolley

X348 Trolley | 3" Overhead Conveyor Trolley for Poultry Line Specification:

Trolley
Size
Matched
Chain
Trolley Dimensions
Trolley
Capacity
Type
A
B
C
D
E
F
G
H
3"
348、80
3.66"
0.55"
3.94"
2.35"
2.50"
1.88"
0.24"
5.5"
70kg
C
93mm
14mm
100mm
59.6mm
63.5mm
47.8mm
6mm
139.7mm
