XT160 Metric Forged Chain | Power and Free Conveyor Components

XT160 Metric Forged Chain | Power and Free Conveyor Components

XT160 Metric Forged Chain | Power and Free Conveyor Components

CategoriesPower and Free Conveyor Components
BrandCamel Chain Conveyor Chain Manufacturers
ModelXT160
MaterialSAE5140 /SAE4140/SAE8642
Heat TreatmentThrough Hardening
Surface TreatmentZinc Plating/Hot-Dip Galvanizing/Other Surface Ant
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 2,2024
Detail Information

XT160 Metric Forged Chain | Power and Free Conveyor Components Description:

The XT160 Dropped Forged Chain is commonly used in conveyor systems, material handling equipment, and other heavy-duty applications. The chain is capable of withstanding high loads and is designed to operate in harsh environments.

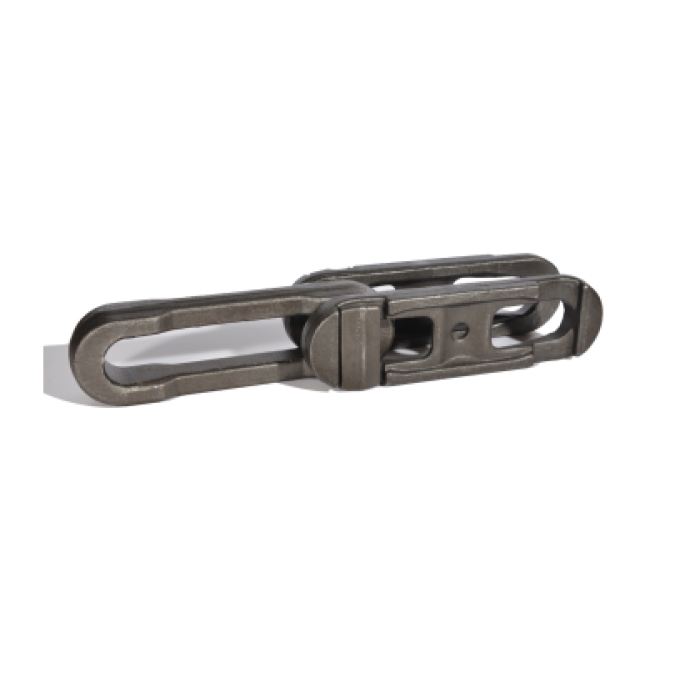

Item Picture:

CC100 chain
CC100 chain

XT160 Metric Forged Chain | Power and Free Conveyor Components Schematic Diagram:

CC100 CHAIN

XT160 Metric Forged Chain | Power and Free Conveyor Components Specification:

Chain No.
Pitch
Pin Diameter
Pin Length
Other Dimensions
Ultimate Tensile Strength
Type
P
D
L
A
B
C
E
Q
XT160
6.3"
0.945”
3.07"
2.13"
0.81"
1.36”
1.1"
92250 lbs
Regular
160mm
22.2mm
78mm
54mm
20.5mm
34.5mm
28mm
410 KN

Overview:

Trustworthy Camelconvey

Camelconvey is a conveyor chain manufacturer with over 30 years of history. We are passionate about innovation and the pursuit of excellence. Camelconvey has a comprehensive product development and customer service system, continuously improving customer-centric product solutions. Providing the highest quality conveyor chains from China to customers worldwide is our unwavering pursuit.
