Metric Forged Chain | Power and Free Conveyor Components

Metric Forged Chain | Power and Free Conveyor Components
Metric Forged Chain | Power and Free Conveyor ComponentsMetric Forged Chain | Power and Free Conveyor Components

Metric Forged Chain | Power and Free Conveyor Components

CategoriesPower and Free Conveyor Components
BrandCamel Chain Conveyor Chain Manufacturers
ModelP2
MaterialSAE5140 /SAE4140/SAE8642
Heat TreatmentThrough Hardening
Surface TreatmentZinc Plating/Hot-Dip Galvanizing/Other Surface Ant
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 3,2024
Detail Information

Metric Forged Chain | Power and Free Conveyor Components Description:

Dropped Forged Chain is commonly used in conveyor systems, material handling equipment, and other heavy-duty applications. The chain is capable of withstanding high loads and is designed to operate in harsh environments.

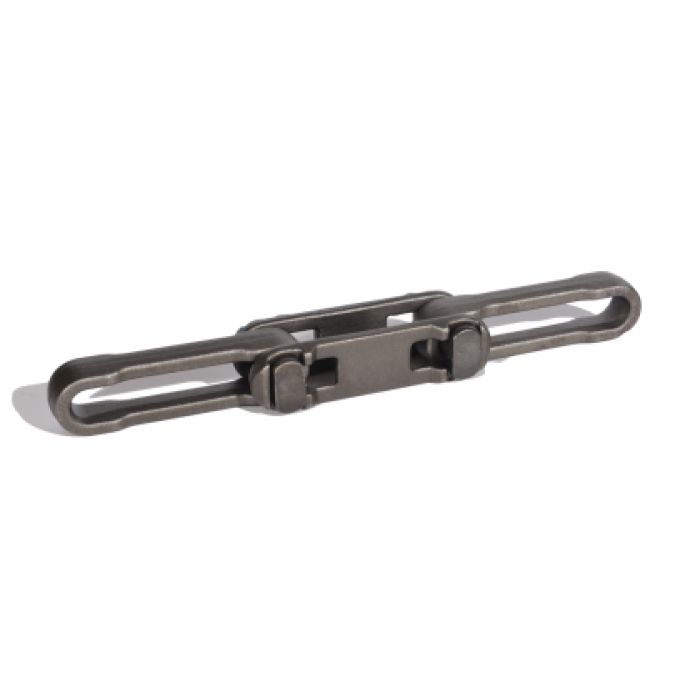

Item Picture:

P2 chain
P2 chain

Metric Forged Chain | Power and Free Conveyor Components Schematic Diagram:

CC100 CHAIN

Metric Forged Chain | Power and Free Conveyor Components Specification:

Chain No.
Pitch
Pin Diameter
Pin Length
Other Dimensions
Ultimate Tensile Strength
Type
P
D
L
A
B
C
E
Q
P2-80-106
80mm
12mm
48mm
29mm
13mm
18.8mm
13.5mm
106 KN
Regular
P2-80-290
80MM
18.4mm
73mm
42mm
20mm
32mm
19mm
290 KN
Regular
P2-100-220
100mm
16mm
57mm
36mm
16mm
25.4mm
17.4mm
220 KN
X

Overview:

Trustworthy Camelconvey

Camelconvey is a conveyor chain manufacturer with over 30 years of history. We are passionate about innovation and the pursuit of excellence. Camelconvey has a comprehensive product development and customer service system, continuously improving customer-centric product solutions. Providing the highest quality conveyor chains from China to customers worldwide is our unwavering pursuit.
