C188 Combination Chain | C188 Cast Pintle Chain Rivited

C188 Combination Chain | C188 Cast Pintle Chain Rivited
C188 Combination Chain | C188 Cast Pintle Chain RivitedC188 Combination Chain | C188 Cast Pintle Chain Rivited

C188 Combination Chain | C188 Cast Pintle Chain Rivited

CategoriesSugar Mill Chain
BrandCamelConvey Conveyor Chain Manufacturer
ModelC188 Chain
Material40Cr
Heat TreatmentThrough Hardening
Surface TreatmentNatural
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeDec 10,2024
Detail Information

C188 Combination Chain | C188 Cast Pintle Chain Rivited Description:

The C188 Combination Chain is a versatile and durable chain designed for use in timber industries and a wide range of other applications, including large-scale event staging and material handling. As a trusted conveyor chain manufacturer, CamelConvey offer the C188 chain in both riveted and cotter pin constructions, ensuring maximum service life with minimal maintenance requirements. With a 2.609" pitch, this chain is one of the most common sizes in its class and is ideal for both abrasive and non-abrasive environments.

The C188 combination chain is used extensively in bucket elevators, flight conveyors, forest products, grain handling, sugar processing, and more. As a leading Sugar Mill Chain Supplier, CamelConvey provide C188 chain solutions tailored for sugar mills and other industrial applications. The chain features cast inner links (blocks) and mild steel pin links, making it highly durable and abrasion-resistant while maintaining an economical price point. This construction provides excellent tensile strength, ensuring long-lasting performance in gritty environments.

The C188 chain for large-scale event staging is also an excellent option due to its ability to operate bi-directionally, thanks to its symmetric links. This makes it ideal for diverse applications, including moving heavy loads or ensuring smooth operation in demanding systems. We also offer a wide range of C188 chain attachments, sprockets, and accessories to meet your specific needs.

Key specifications include:
● Pitch: 2.609" (46 links per 10 ft)
● Average Ultimate Strength: 18,900 lbs
● Durable, abrasion-resistant construction
● Welding permissible on outer steel side plates
● Can be operated in either direction

The C188 pintle chain variant is also available, providing additional options for specialized applications. Whether you need to convey materials in the cement, paper and pulp, quarrying, or mining industries, the C188 Combination Chain is the ideal choice for elevating and conveying a variety of materials. However, it is not recommended for use as a drive chain.

For more information or to receive a quote on the C188 Combination Chain, Please contact CamelConvey service team.

C188 Combination Chain | C188 Cast Pintle Chain Rivited Pictures:

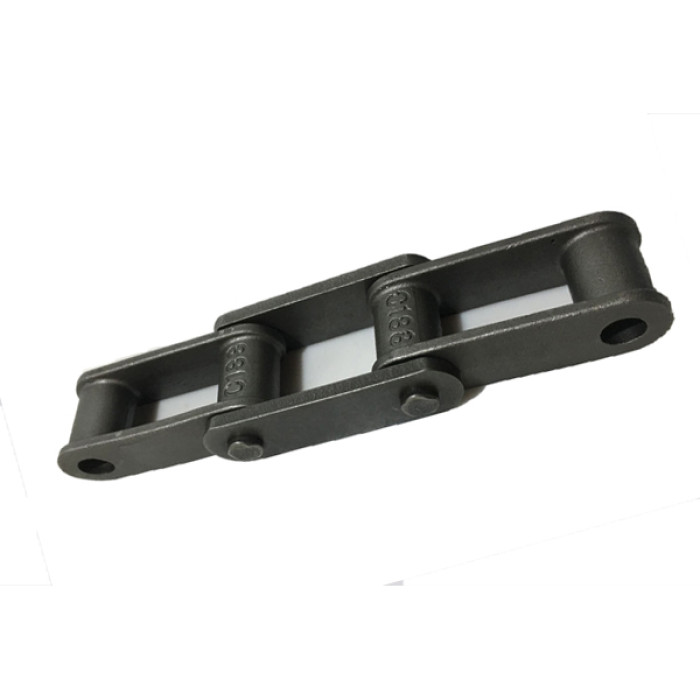

C188 Cast Chain
C188 Cast Chain

C188 Combination Chain | C188 Cast Pintle Chain Rivited Schematic Diagram:

C188 Cast Chain

C188 Combination Chain | C188 Cast Pintle Chain Rivited Specification:

Chain No.
Pitch
Dimensions
Average
U.T.S
P
A
B
C
D1
D2
T
C188
2.61"
1.13"
0.94"
1.57"
0.50"
0.88"
0.24"
14000 lbs
66.27mm
28.6mm
23.9mm
39.8mm
12.7mm
22.4mm
6mm
62KN
