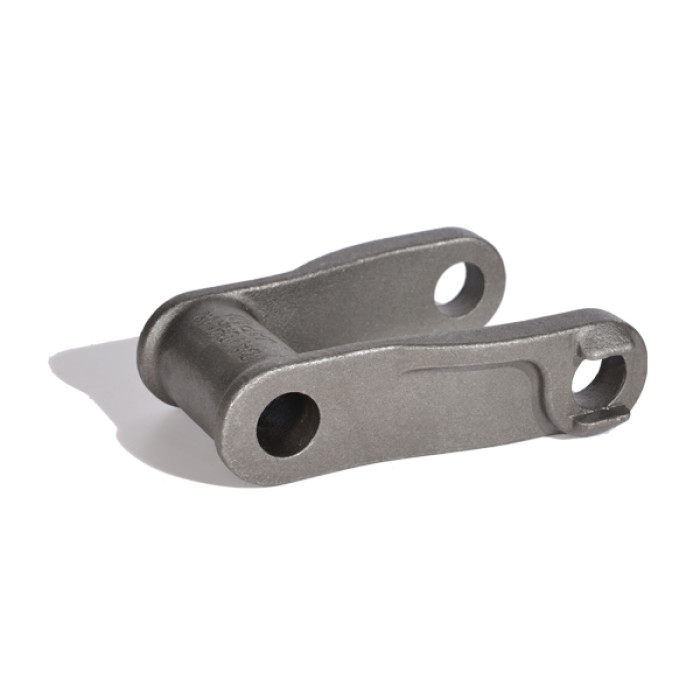

"H" Class Mill Chain | H Class Pintle Chain with attachment

"H" Class Mill Chain | H Class Pintle Chain with attachment
"H" Class Mill Chain | H Class Pintle Chain with attachment"H" Class Mill Chain | H Class Pintle Chain with attachment"H" Class Mill Chain | H Class Pintle Chain with attachment

"H" Class Mill Chain | H Class Pintle Chain with attachment

CategoriesSugar Mill Chain
BrandCamelConvey Conveyor Chain Manufacturer
ModelH Class
Material40Cr
Heat TreatmentThrough Hardening
Surface TreatmentNatural
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeDec 10,2024
Detail Information

What is the "H" Class Mill Chain?

The "H" Class Mill Chain is a high-strength, heavy-duty conveyor chain specifically engineered for use in tough environments like steel mills, cement plants, and power generation facilities. With its robust design, it offers excellent wear resistance, making it ideal for applications that involve abrasive materials and extreme operational conditions.

Thanks to its unique design and durable construction, the "H" Class Mill Chain provides exceptional load-bearing capabilities and can handle high-speed operations with ease. Whether you're transporting raw materials or heavy products through your manufacturing process, this chain can provide the performance needed to keep your systems running smoothly.

The Versatility of the "H" Class Pintle Chain

On the other hand, the "H" Class Pintle Chain is another powerful option for businesses requiring a reliable solution for their material handling needs. Known for its high tensile strength and adaptability, this chain is perfect for a variety of industries, including mining, agriculture, and food processing.

The "H" Pintle Chain offers flexibility, with its ability to be used in both horizontal and inclined applications. It's ideal for conveying bulk materials, and like its mill counterpart, it offers excellent resistance to wear, fatigue, and corrosion. Whether you're using it in rugged outdoor conditions or in environments that demand precision and speed, the "H" Class Pintle Chain stands out as one of the most dependable solutions.

"H" Class Pintle Chain Specification :

CC100 CHAIN
Chain No.
Pitch
Dimensions
Average
U.T.S
P
A
B
C
D1
D2
H60
2.308"
0.75"
0.75"
1.50"
0.31"
0.75"
7000 lbs
58.62mm
19.05mm
19.05mm
38.1mm
7.9mm
19.05mm
31 KN
H78
2.609"
1.12"
1.12"
1.88"
0.50"
0.88"
12600 lbs
66.27mm
28.5mm
28.5mm
47.75mm
12.7mm
22.35mm
56 KN
H82
3.075"
1.25"
1.25"
2.12"
0.56"
1.22"
17000 lbs
78.1mm
31.75mm
31.75mm
53.8mm
14.2mm
31mm
75.5 KN
H124
4"
1.56"
1.63"
2.75"
0.75"
1.44"
24500 lbs
101.6mm
39.62mm
41.4mm
69.85mm
19.05mm
36.58mm
109 KN

"H" Class Pintle Chain with K1 Attachment Specification:

H series pintle chain with K1 attachment
Chain No.
Pitch
Dimensions
P
h
G
E
d
F
W
H60
2.308"
0.75"
1.13"
1.06"
0.31"
3"
4"
58.62mm
19.05mm
28.7mm
26.9mm
7.9mm
76.2mm
101.6mm
H78
2.609"
0.69"
1.13"
1.25"
0.31"
2.88"
3.88"
66.27mm
17.5mm
28.7mm
31.75mm
7.9mm
73.15mm
98.55mm
H82
3.075"
0.81"
1.38"
1.25"
0.38"
4"
5"
78.1mm
20.58mm
35mm
31.75mm
9.65mm
101.6mm
127mm
H124
4"
1.19"
2.87"
1.89"
0.38"
5.25"
6.38"
101.6mm
30.2mm
72.9mm
48mm
9.65mm
133.4mm
162mm

"H" Class Pintle Chain with K2 Attachment Specification:

H series pintle chain with K2 attachment
Chain No.
Pitch
Dimensions
P
h
G
L
d
F
W
H82
3.075"
0.88"
2.19"
1.31"
0.38"
4.25"
5.5"
78.1mm
22.35mm
55.6mm
33.3mm
9.65mm
108mm
139.7mm
H124
4"
1.19"
2.88"
1.94"
0.38"
5.25"
6.38"
101.6mm
30.2mm
73.1mm
49.3mm
9.65mm
133.4mm
162mm
Customer dimensions are also available.

Maximizing Durability and Performance with "H" Class Mill Chain and Pintle Chain Solutions

When it comes to optimizing material handling systems, whether in mills or heavy-duty conveyor systems, the quality of chains used is crucial. Among the most durable and high-performance options available today are the "H" Class Mill Chain and "H" Class Pintle Chain. These advanced solutions are designed to enhance the reliability and efficiency of your industrial operations. As a leading cast conveyor chain supplier, CamelConvey offers a broad selection of these chains, including the highly sought-after "H" Class Mill Chain and "H" Class Pintle Chain, to help businesses boost their productivity.In order to meet the different use requirements of customers, CamelConvey also have various chains with attachments for customers to choose. Like with K1 or K2 attachment etc.

"H" Class Pintle Chain are top-tier solutions designed for heavy-duty applications. Offering superior durability, strength, and adaptability, these chains are essential for any business looking to streamline operations. As a trusted cast conveyor chain supplier, CamelConvey offers these products with the reliability and support you need to keep your systems running efficiently.

Ready to upgrade your conveyor system with the best in class?
Contact CamelConvey today and explore our full range of industrial chains and accessories. Let us help you find the perfect solution for your business needs!
